We provide both standard and custom Display Controller Boards at low prices. Our specialty includes designing custom boards such as MIPI Controller Boards and ARM Embedded Boards (click for more Info).

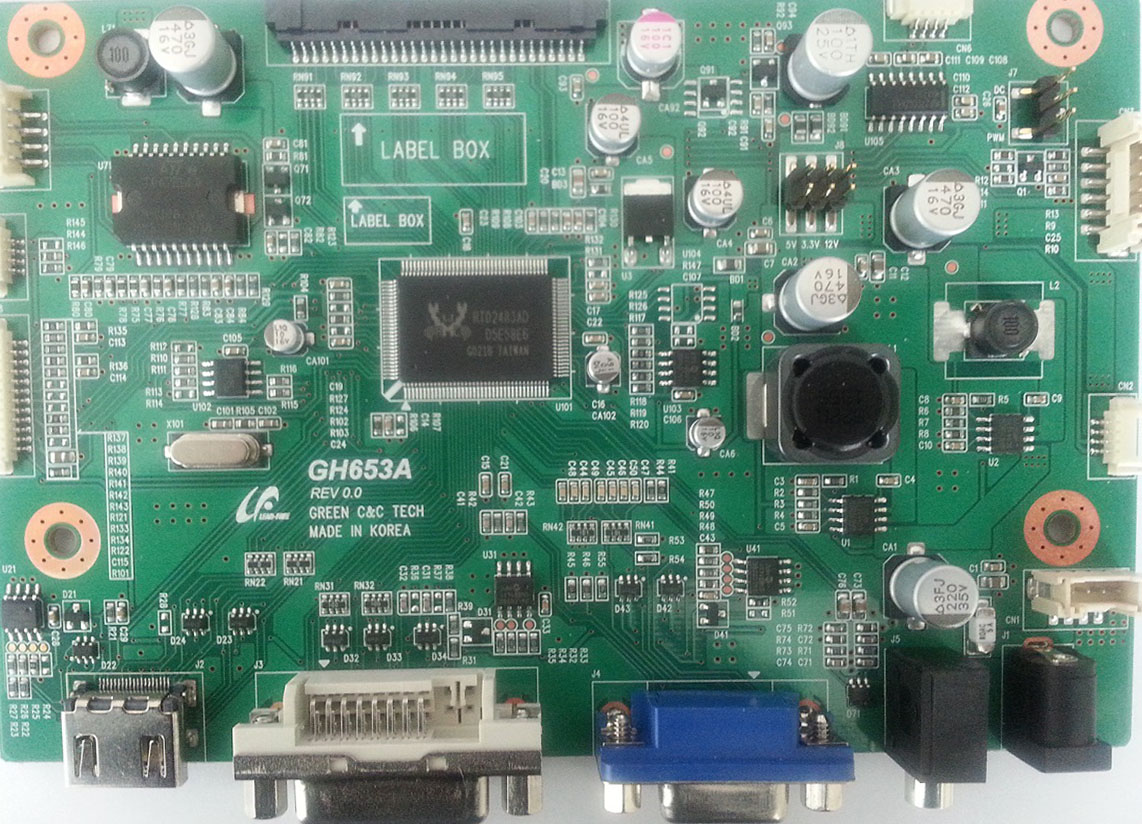

- Display Controller Boards:
* Input: DP, HDMI, DVI, VGA, Component, and/or Composite, USB
* Output: TTL RGB, LVDS, Vx1 (V by One), eDP, MIPI

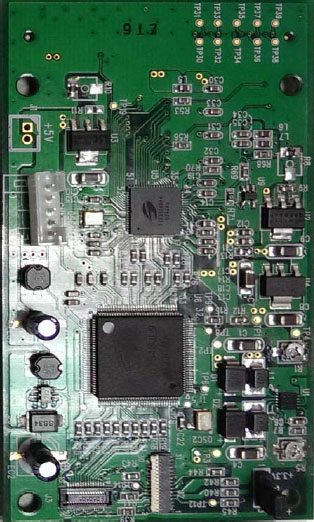

- Interface Conversion Boards:
* Input: LVDS, DP
* Output: MIPI, eDP
- Conversion Boards:
* 60Hz to 120Hz FRC Board
* 2D/3D to 3D/ 2D Conversion
- Embedded System Boards: Linux, Android
Please contact our sales team (Cghwang@SignetCNK.com) for more information and pricing.
The below are some of the available boards.
| Model |
Resolution |
Input |
Output |
Dimension |
Remark |
| TTL and LVDS Interface |
| NCB120E |
1920x1080 |
RGB, Composite |
TTL, LVDS |
145x105x15mm |
|
| Poppy-D |
1600x1200 |
RGB, DVI-D, Audio |
TTL, LVDS |
100x150x15mm |
RS232, LED Driver |
| Poppy-O2 |
1920x1080 |
RGB, DVI-D or HDMI |
TTL, LVDS |
96x96x15mm |
RS232, LED Driver |
| UV01DA |
1440x900 |
USB |
TTL, LVDS |
95x60x11mm |
|
| LVDS Interface |
| GH547A |
1920x1080 |
RGB, DVI-D, HDMI, Audio |
LVDS |
150x100x16mm |
RS32, LED Driver, Photo Sensor |
| GH550A |
1920x1080 |
RGB, DVI-D |
LVDS |
100x87x8mm |
Connector-board |
| GH554A |
1280x800 |
RGB, HDMI |
LVDS |
100x80x16mm |
|
| NCB225W |
1920x1080 |
DP |
LVDS |
110x100x13mm |
RS232 |
| NCB420U |
1920x1080 |
RGB, DVI-D, Composite |
LVDS |
175x115x19mm |
Optional 3D/ 120Hz conversion board |
| VCB1078 |
1920x1080 |
RGB, DVID-D, Audio |
LVDS/ eDP |
136x134x17mm |
Dynamic Contrast |
| VCB1086 |
1920x1080 |
RGB, DVI-D |
LVDS |
140x140x18mm |
Video-wall board |
| VCB1091 |
2560X1600 |
DVI-D (Dual-link), Audio |
LVDS |
135x80X17mm |
|
| VCB1100 |
2048X1152 |
RGB, DVI-D |
LVDS |
90x65x14mm |
|
| VCB1300 |
2048X1152 |
RGB, DVI-D, HDMI, Audio |
LVDS |
150x102x16mm |
RS232 |
| VCB1500 |
2560X1600 |
RGB, DVI-D, HDMI, DP, AUDIO, SPDIF |
LVDS/ eDP |
194x120x23mm |
120Hz |
| VCB1501 |
2560X1600 |
RGB, DVI-D, HDMI, Audio |
eDP |
185X85X23mm |
LED Driver |
| VCB1800 |
2560X1600 |
DVI-D, Audio |
eDP |
110x130x14mm |
|
| VCB1802 |
2560X1600 |
DVI-D (Dual-link) |
eDP |
172x107x14mm |
LED Driver |
| Poppy-S2 |
1920x1080 |
RGB, DVI-D or HDMI, DP |
LVDS |
100x120x8mm |
Connector-board, RS232, LED Driver |
| UV03D02 |
1920x1080 |
USB |
LVDS |
100x90x14mm |
|
| UA01D0X |
2048x1152 |
USB |
DVI-I |
79x44x13mm |
USB DisplayLink Adapter |
| MIPI Interface |
| MPFH2 |
1080x1920 |
DVI-D, HDMI |
MIPI |
113x69x20mm |
RS232, daughter board |
| MPFH3 |
1080x1920 |
HDMI |
MIPI |
78x62x8mm |
daughter board |
| MPQD-DP |
1440x2560
2160x3840 |
DP |
MIPI |
75x50x8mm |
|
| MPQD-HM |
1440x2560
2160x3840 |
HDMI |
MIPI |
125x17x8mm |
|
| 4K Interface |
| VCB1340 |
4096X2160 |
HDMI, DP(MST) |
LVDS, Vx1, eDP |
200x130x16mm |
RS232,
VSB4KFRC for Vx1 16-lane LCD |
| Interface Conversion |
| MPPSeDP |
1920x1080 |
DP |
eDP |
75x50x8mm |
|
| MIPI2848 |
1080x1920 |
LVDS |
MIPI (4-lane) |
90x50x15mm |
|
| VCB1081 |
1920x1080 |
LVDS |
eDP |
110x65x15mm |
|
| Conversion Board |
| VCB1801 |
1920x1080 |
LVDS |
LVDS |
63x62x9mm |
2D/3D to 3D/2D |
| NSBFRC |
1080x1920 |
LVDS |
LVDS |
90x50x15mm |
60Hz to 120Hz |
| VSB4KFRC |
3840x2160 |
Vx1 or LVDS |
Vx1 |
160x140x14mm |
60Hz to 120Hz |
| VSB3DFRC |
1920x1080 |
LVDS |
LVDS |
95x84x18mm |
60Hz to 120Hz
2D/3D to 3D/2D |
| Embedded System Boards |
| HW1440P |
1440x2560 |
HDMI (1920x1080) |
MIPI (8-lane) |
113x69x22mm |
4-core ARM |
| VDP-210L |
2048x1152 |
|
LVDS |
138x78x20mm |
2-core ARM |
|
